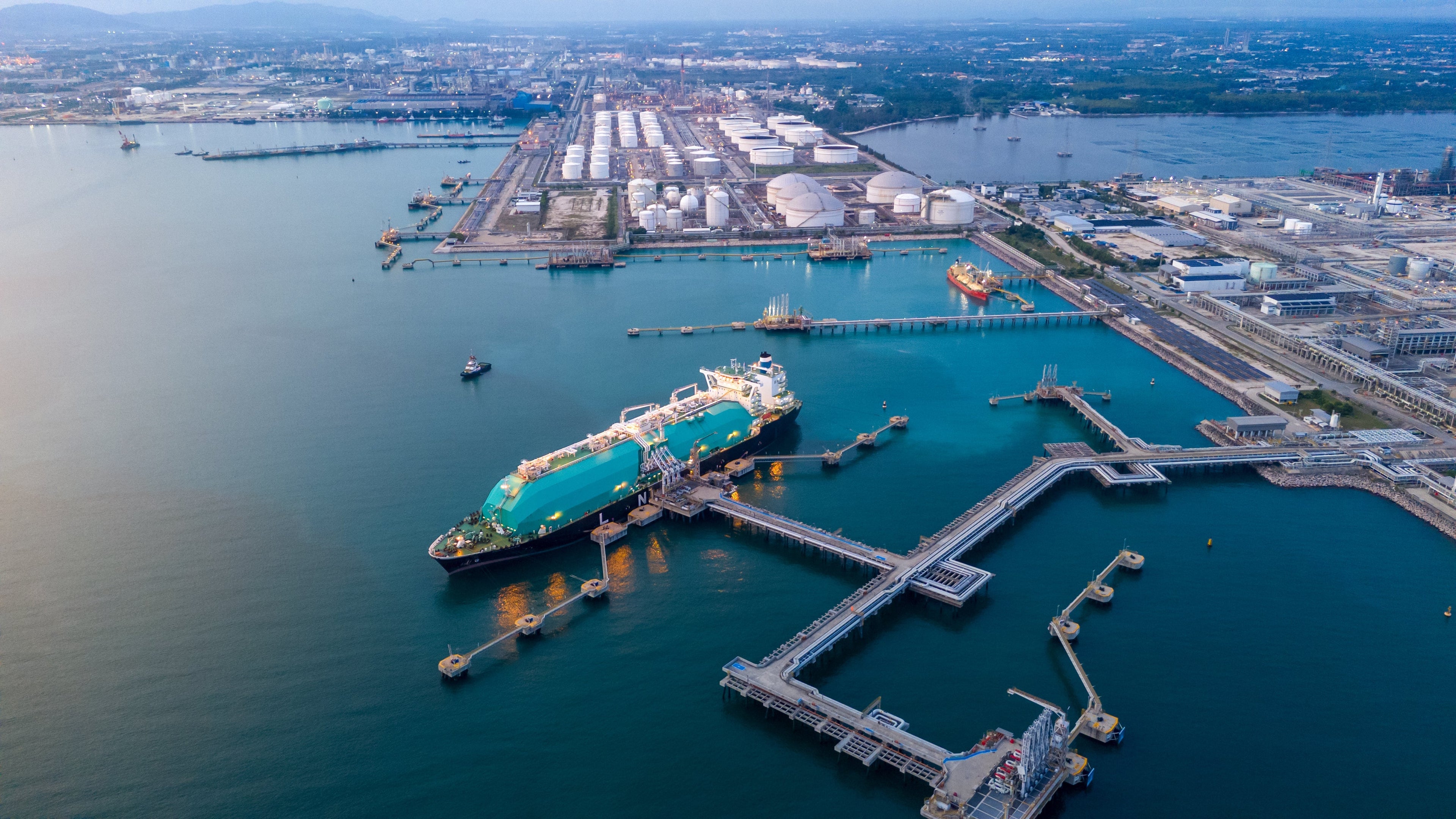

The Real-World Situation at U.S. LNG Export Terminals
Liquefaction terminals turn pipeline-quality natural gas into LNG for tanker loading. The process involves compression, cooling to around -260°F, and storage in large cryogenic tanks before loading ships. Today, these sites operate under intense pressure: new trains coming online, contractors ramping up headcount, and a steady queue of foreign-flag LNG carriers at the berth.
The current boom is amplified by disruptions in traditional supply routes. Many international buyers are turning to stable U.S. volumes to rebuild reserves. On the water side, there are still no Jones Act-compliant large LNG carriers, so vessels and their crews operate under international standards. Shore-side operations remain governed by U.S. practices, which vary by company and even by which chapter of the National Electrical Code (NEC) personnel were trained under.The result is a daily reality where a mechanic on the jetty might hear “Zone 1” from the ship’s chief engineer while the plant electrician talks about “Class I Div 2.” During rapid scaling, new contractors bring their own training backgrounds, and facility-wide consistency becomes harder to maintain.
Why These Environments Are Challenging and Hazardous
LNG facilities handle large volumes of flammable gas under pressure and at extreme cold temperatures. The primary hazard is natural gas itself—mostly methane—which is lighter than air and can form explosive mixtures in the 5–15% range by volume. Trace components such as ethane, propane, and, in some feed gases, hydrogen sulfide (H2S) add complexity.
Hazards concentrate in several areas:
• Loading arms and marine berths where connections are made and broken
• Compressor stations and refrigeration trains
• Vent and relief systems
• Confined spaces inside tanks or piping during maintenance
• Areas around boil-off gas (BOG) handling
Rapid expansion brings additional risks: rushed area classification reviews, mixed workforces with varying familiarity in local vs. international rules, and the pressure to keep throughput high while turning over crews. A small release that might be managed in normal operations can escalate quickly if equipment is not correctly rated for the actual atmosphere present.
Common Terminology You’ll Hear on Site
Walk a typical Gulf Coast LNG terminal and you’ll hear two overlapping languages:
• Marine side (ship crews and many international contractors): IECEx or ATEX markings — “Ex d IIB T4 Gb”, “Zone 1”, “IIA/IIB”.
• Shore side (U.S. operators, many contractors): NEC Article 500 — “Class I, Division 2, Group D” or, increasingly, NEC Article 505 — “Class I, Zone 2, Group IIB”.
You may also hear references to UL listings, API recommendations, or simply “explosion-proof” or “intrinsically safe.” The mix is not academic; it affects what portable tools, lights, fans, or heaters can be brought into an area without creating an ignition source.
What the Technical Designations Mean in Plain Terms
Class I simply means the hazard is flammable gas or vapor (as opposed to dust or fibers).
• Division 1 (or roughly Zone 0/1): The hazardous atmosphere is expected to be present under normal operating conditions or frequently. Equipment here must contain or prevent ignition even if a fault occurs.
• Division 2 (or roughly Zone 2): The hazard is present only under abnormal conditions, such as a leak or equipment failure. Most day-to-day portable equipment at many LNG loading areas falls here, but the exact boundary depends on the site-specific classification study.
Gas Groups tell you how easily the gas ignites and how explosive the mixture is:
• Group D (or IIA) covers methane and many common hydrocarbons found in pipeline gas.
• Group C (or IIB) covers gases like ethylene or higher amounts of propane.
• Group B (or IIB + H2) covers hydrogen or acetylene—less common in pure LNG service but possible in certain processing steps or if H2 is blended.
Temperature Class (T-rating) limits the maximum surface temperature of equipment so it stays well below the auto-ignition temperature of the gas. T4 (135°C max) or T5 is common in LNG areas because of the cold process temperatures and the properties of methane.
IECEx and ATEX use Zones exclusively (0, 1, 2) and “Ex” protection concepts (flameproof “d”, increased safety “e”, intrinsic safety “i”, etc.). The systems are not perfectly equivalent. Equipment certified only under one system generally cannot be freely substituted for the other without proper review and, in many cases, additional assessment. In practice, many modern pieces of gear carry dual or multi-certification to bridge the gap.
Thinking About the Hazard Practically
At an LNG terminal, the atmosphere around a loading arm during normal operations is usually non-hazardous or Zone 2/Division 2 because the gas is contained. But during cooldown, purging, or if a seal leaks, the classification can change quickly. Boil-off gas management and vent stacks create their own localized risks.
H2S, when present in “sour” feed gas, adds toxicity concerns alongside flammability. Even sweet gas can carry trace levels that accumulate in low-lying or confined areas. Cold weather (common on the Gulf Coast in winter) affects battery performance, material brittleness, and the behavior of vapor clouds.
During boom times, the biggest practical risk is often not a dramatic release but the quiet accumulation of mismatched equipment brought in by new crews or rented tools that were certified for a different gas group or zone.
What Type of Equipment Is Generally Appropriate
For portable and temporary use in these mixed environments, focus on gear that matches the site’s area classification study while allowing flexibility for marine interfaces.
• Air movement: Ventilation is critical for purging, diluting vapors, and maintaining breathable air in confined spaces or during maintenance. Look for units suitable for the expected gas group (typically Group D/IIA for methane-rich atmospheres) and temperature class. Portable explosion-protected fans help move heavy vapors or clear BOG accumulations.
• Light: Task and scene lighting must provide reliable illumination without becoming an ignition source. Battery-powered or low-voltage lights rated for the zone/division and gas group keep crews safe during night loading, inspections, or emergency response.
• Power: Portable power distribution for tools, lighting, and monitoring equipment needs to be protected against sparks or hot surfaces. Cable management, grounding, and proper plugs become especially important when interfacing with vessels that may use different systems.
Mistakes and Misunderstandings to Avoid
• Assuming “Zone 2” and “Division 2” are always interchangeable without checking the actual protection method and gas group.
• Bringing ship-side equipment ashore (or vice versa) without verifying site acceptance and jurisdiction requirements.
• Relying on generic “explosion-proof” labels without confirming the full marking string matches the area classification.
• Overlooking temperature class in cold-process areas where equipment surface heating could still ignite vapors.
• During rapid contractor onboarding, skipping verification that rented or new gear carries the correct dual certification or has been reviewed by the facility’s safety team.
Equipment Considerations
In LNG export terminals, the most relevant ExSafe solution categories are air, light, and power:
• Air: Portable ventilation and air-moving equipment rated for Class I, Division 2 (or Zone 2) Group D atmospheres helps dissipate vapors during purging, tank entry preparation, or spill response. Pay attention to ingress protection for the humid, salty coastal environment and runtime needs during extended maintenance windows.
• Light: Hazardous-area-rated temporary lighting provides clear task illumination at loading arms, walkways, and work platforms. Look for high lumen output with low heat, long battery life or reliable corded options, and markings that cover both Division and Zone language when crews cross boundaries.
• Power: Safe portable power solutions—distribution boxes, cords, and generators—support tools and monitoring without introducing ignition risks. Key factors include durability against weather and rough handling, proper grounding, and compatibility with the gas groups and temperature classes present at the specific terminal.
These solutions are chosen based on the site’s documented hazardous area classification, expected runtime, portability requirements, and the need for quick deployment during turnarounds or high-activity loading periods.
What to Verify Before You Select Equipment
Before deploying any air, light, or power gear at an LNG terminal:
1. Obtain the current area classification drawing or study for the exact location of use—confirm whether it is Division 1/2 or Zone 0/1/2 and the gas group.
2. Check the full certification marking on the equipment against that classification. Look for gas group (IIA, IIB, etc.), temperature class (T3, T4, etc.), and protection type.
3. Confirm the certifying body and standard (UL, IECEx, ATEX, etc.) and whether the equipment is accepted under the facility’s safety management system and local jurisdiction.
4. Verify suitability for the ambient conditions—temperature swings, humidity, salt air, and potential cryogenic exposure.
5. For multi-crew environments, ensure the gear’s documentation is clear enough for both NEC-trained and IECEx/ATEX-trained personnel to understand its limitations.
6. Always confirm that the equipment has been maintained and inspected per the manufacturer’s hazardous-location instructions.
Remember: Certifications are not universal. What works on one terminal may need additional review on another due to differences in company standards or feed gas composition.
The rapid growth of U.S. LNG exports brings both opportunity and responsibility. By staying clear on the practical meaning of the mixed certification language, tying equipment choices directly to the real gases and operating conditions on site, and verifying suitability before deployment, teams can maintain strong safety performance even as the pace accelerates. Informed selection keeps operations reliable and protects everyone working in these demanding environments.
